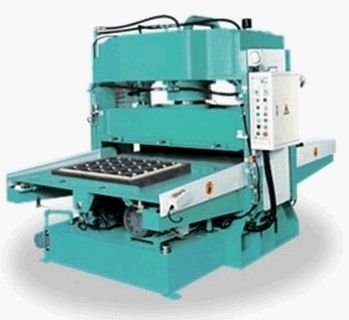

HYDRAULIC CUTTING MACHINE (AUTO FEEDING)
【SPECIFICATIONS】
| Model | HC-170 | HC-170AB | HC-200 | HC-200AB |
| Power | 7 1/2 HP | 7 1/2 HP | 10 HP | 10 HP |
| Working Surface(mm) | 800x1500 | 800x1500 | 1100x1400 | 1100x1400 |
| Working Capacity | 170 Ton | 170 Ton | 200 Ton | 200 Ton |
| Max Displacement(mm) | 200 | 200 | 200 | 200 |
| Size of Machine(mm) | 2300x2200x2350 | 3400x2200x2350 | 2900x2200x2350 | 4300x2200x2350 |
| Weight of Machine | 6200 kgs | 8000 kgs | 7500 kgs | 10000kgs |
| *Suffix AB is required if the model is double-ended.(two ends operation) |

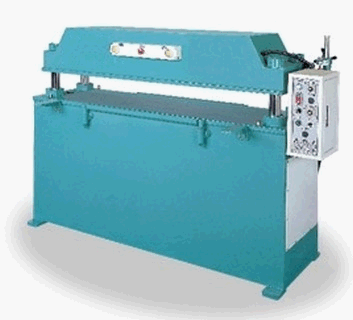

HIGH SPEED HYDRAULIC PLANE CUTTING MACHINE
【SPECIFICATIONS】
| Model | HC-20 |
| Power | 5 HP |
| Working Surface(mm) | 500x1500 |
| Working Capacity | 20 Ton |
| Max Displacement(mm) | 150 |
| Size of Machine(mm) | 2250x1000x1600 |
| Weight of Machine | 1900 kgs |
| *Suffix AB is required if the model is double-ended.(two ends operation) |
【FEATURES】
- For various types of vacuum forming for plastic products like PVC, PSP, PP, ABS, and EVA, which can be used for disposable PVC tableware, food packages, foam, plywood, and soles.
- Adopts of either one-way or two-way for operation, depending on situations; operators don’t need to move around while working— efficient and easy-to-use.
- The maximum applicable width of material is 250mm and can be adjusted at free will.
- After cutting, being moveable at free will so as to take out the products.
- Strong pressure and stable cutting ability, unlikely to deform the cutter and the cutter plate, and without errors when cuts to multi-layer.
- Easy to operate, low rate of malfunction, and easy to handle the maintenance.
|
